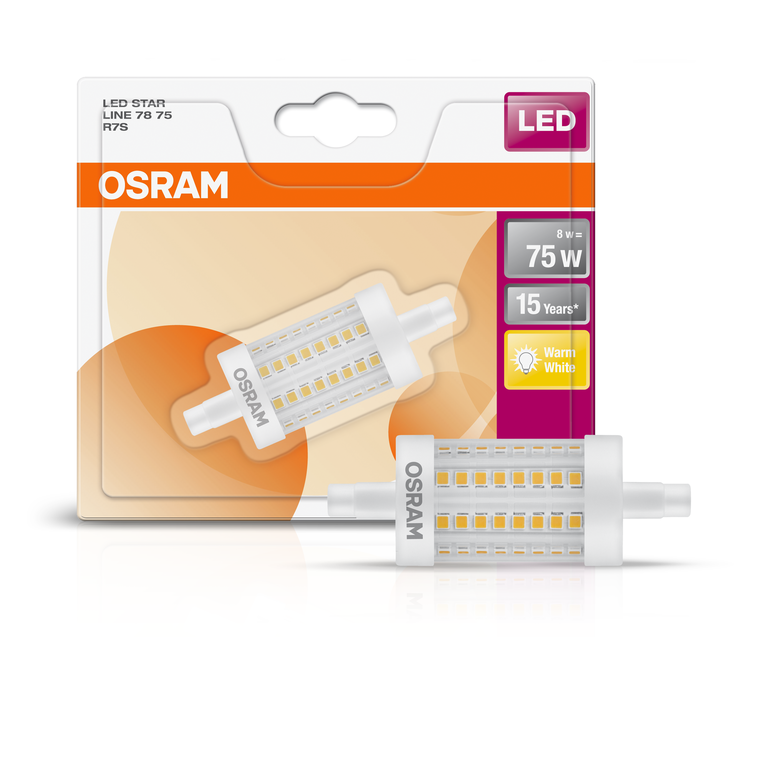

ST LINE 78.00 mm 75 8 W/2700 K R7s
Product benefits
- Long lifetime of up to 15,000 h
- Low energy consumption
- Three year guarantee
- Good all-around light emission
- Fits into most R7s luminaires thanks to excentric base
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 69 mA |
| Type of current | AC |
| Inrush current | 4.68 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 71 |
| Max. lamp number on MCB B16 A | 114 |
| Power factor λ | 0.50 |
| Luminous flux | 1055 lm |
| Nominal useful luminous flux 90° | 1055 lm |
| Luminous efficacy | 131 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
| Overall length | 78.00 mm |
| Diameter | 29 mm |
| Maximum diameter | 29 mm |
| Product weight | 51.00 g |
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 90 °C |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
| Base (standard designation) | R7s |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
| Dimmable | No |
| Energy efficiency class | E 1) |
| Energy consumption | 8.00 kWh/1000h |
| Type of protection | IP20 |

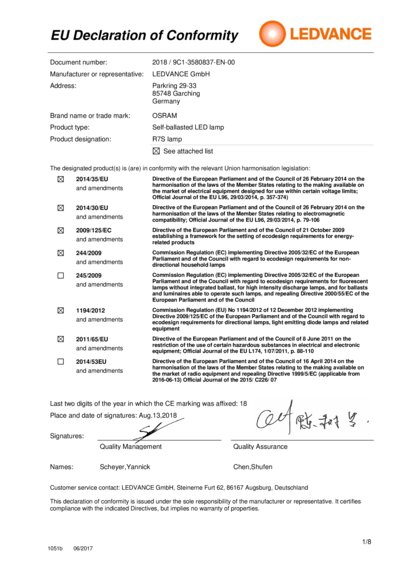

| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
| ILCOS | DRDG-8/827-230-R7s-114,2 |
| Order reference | LEDSLI 78 75 8W |
| Light source cap-type (or other electric interface) | R7s |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 78.00 mm |
| Height | 29 mm |
| Width | 29 mm |
| EPREL ID | 1402933 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075811676 | Blister 1 |
37 mm x 140 mm x 120 mm | 63.00 g | 0.62 dm³ |
| 4058075272170 | Folding box 1 |
30 mm x 30 mm x 82 mm | 54.00 g | 0.07 dm³ |
| 4058075811683 | Shipping box 9 |
345 mm x 153 mm x 136 mm | 722.00 g | 7.18 dm³ |
| 4058075272187 | Shipping box 10 |
169 mm x 72 mm x 91 mm | 571.00 g | 1.11 dm³ |
| 4058075272194 | Shipping box 120 |
347 mm x 226 mm x 191 mm | 7035.00 g | 14.98 dm³ |
